• Wheels, 4-20" x 8.5" (50.8 cm x 21.6 cm) polished aluminum
• Tires, P275/55R20, all-season, blackwall
• Recovery hooks, front, frame-mounted (Standard with 4WD Models only)
• Wheel, 17" (43.2 cm) full-size, aluminum spare (Requires 4WD models.)
• Tire, spare P265/70R17
• Luggage rack side rails, roof-mounted, Black
• Luggage rack center rails, roof-mounted, Black
• Assist steps, Dark Charcoal
• Fascia, front color-keyed
• Fascia, rear color-keyed
• Grille insert, bright chrome
• Moldings, bodyside, color-keyed (Unique design with chrome strip included on LTZ)
• Door handles, Chrome
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Fog lamps, front, halogen
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators and ground illumination (Mirror caps are bright chrome)
• Glass, Solar-Ray deep tinted (all windows except light tinted glass on windshield, driver and front passenger)
• Midgate, foldable door between cargo box and cab with a removable and stowable rear window
• Cargo cover, rear rigid, 3-piece composite, stowable onboard
• Pickup box mat, Black rubber
• Storage box, integrated top box with locks and lights

• Audio system with navigation, AM/FM/SiriusXM stereo with CD player 7-inch touch-screen Color Interface Display (CID), 80 GB Hard Drive, with navigation and voice recognition, USB port, MP3 playback capability, Radio Data System (RDS), speed-compensated volume, time shift recording capability
• NavTraffic is available in over 100 markets and works with your vehicle's navigation system to give you continuously updated traffic data right when you need it most - while you're driving. You'll avoid traffic tie-ups, save time and gas by getting alternate routes, and, in some cases, receive traffic speed and drivetime information. Plus, you can use NavTraffic at the same time you're enjoying SiriusXM Satellite Radio. You'll find that once you start using NavTraffic, you won't want to drive without it. (Requires a subscription sold separately by SiriusXM after trial period which is continuous until you call SiriusXM to cancel. Available only in select markets. For more information, see siriusxm.com/navtraffic.)
• Audio system feature, Bose Centerpoint Surround Sound 8-speaker system
• Audio system feature, USB port
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface), with specific steering wheel controls

• Seats, front bucket with Perforated leather-appointed seating, (AG1) 12-way power driver and (AG2) front passenger seat adjusters, power lumbar control, heated and cooled seats, 2-position driver memory (including lumbar), adjustable head restraints, storage pockets and floor console
• Seats, heated and cooled driver and front passenger
• Seats, rear 60/40 split-bench, 3-passenger, flip and fold with child seat top tether anchor
• Console, floor with storage area, cup holders and integrated second row audio controls (Includes woodgrain covered forward storage.)
• Floor covering, color-keyed carpeting with (B58) carpeted floor mats
• Steering wheel, leather-wrapped
• Steering wheel, heated, leather-wrapped and color-keyed with theft-deterrent locking feature
• Steering wheel controls, mounted audio and cruise controls
• Theft-deterrent system, vehicle, PASS-Key III
• Cruise control, electronic with set and resume speed
• Warning tones headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on
• Windows, power with driver and front passenger Express-Down and lockout features
• Door locks, power programmable with lockout protection
• Pedals, power-adjustable for accelerator and brake
• Remote vehicle starter system includes Remote Keyless Entry
• Universal Home Remote includes garage door opener, programmable
• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger. Includes rear air conditioning outlets in center console when bucket seats are ordered
• Defogger, rear-window electric
• Mirror, inside rearview auto-dimming
• Headliner, cloth
• Visors driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod
• Assist handles, front passenger and rear outboard
• Power outlets 2 instrument panel-mounted auxiliary with covers, 12-volt (On vehicles equipped with (A95) front bucket seats or (AN3) front leather appointed buckets seats, also includes 1 outlet inside center console and 1 in rear of console)
• Lighting, interior with dome lamp, driver-and passenger-side door switch with delayed entry feature, cargo light, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• Rear Vision Camera (Note: images appear on Navigation screen for units equipped with (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation. For units not equipped with Navigation systems images will appear within rearview mirror.)

• StabiliTrak, stability control system with traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on overhead console) (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, front and rear outboard seating positions with rollover sensor (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat outboard occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, seat-mounted side-impact driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• Safety belts 3-point, driver and front passenger and second row all seating positions, center seating position in first row is lap only
• LATCH system, (Lower Anchors and Top tethers for CHildren), for child safety seats
• Rear Parking Assist, Ultrasonic with audible warning
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance including Stolen Vehicle Slowdown and Remote Ignition Block, Remote Door Unlock, Turn-by-Turn Navigation with Destination Download (requires navigation radio) and OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling. (Visit onstar.com for details and system limitations.)
• Automatic Crash Response
• Stolen Vehicle Assistance
• OnStar Turn-by-Turn Navigation
• Tire Pressure Monitoring System (does not apply to spare tire)

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL

• with Active Fuel Management
• capable of running on unleaded or up to 85% ethanol (with gas - 320 hp [239 kW] @ 5400 rpm
• 335 lb-ft of torque [454 N-m] @ 4000 rpm
• with E85 ethanol - 326 hp [243 kW] @ 5300 rpm
• 348 lb-ft of torque [472 N-m] @ 4400 rpm)
• aluminum block (STD)

• AUDIO SYSTEM WITH NAVIGATION AM/FM/SIRIUSXM STEREO WITH CD PLAYER 7-inch touch-screen Color Interface Display (CID) 80 GB Hard Drive with navigation and voice recognition USB port MP3 playback capability Radio Data System (RDS) speed-compensated volume time shift recording capability
• DARK CASHMERE/LIGHT CASHMERE CUSTOM PERFORATED LEATHER-APPOINTED
• ENGINE VORTEC 5.3L V8 SFI FLEXFUEL with Active Fuel Management capable of running on unleaded or up to 85% ethanol (with gas - 320 hp [239 kW] @ 5400 rpm 335 lb-ft of torque [454 N-m] @ 4000 rpm with E85 ethanol - 326 hp [243 kW] @ 5300 rpm 348 lb-ft of torque [472 N-m] @ 4400 rpm) aluminum block (STD)
• REAR AXLE 3.08 RATIO
• TIRES P275/55R20 ALL-SEASON BLACKWALL
• TRANSMISSION 6-SPEED AUTOMATIC
• BLACK
• WHEELS 4-20 X 8.5 (50.8 CM X 21.6 CM) POLISHED ALUMINUM (STD)
• LTZ PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• SEATS FRONT BUCKET with Perforated leather-appointed seating (AG1) 12-way power driver and (AG2) front passenger seat adjusters power lumbar control heated and cooled seats 2-position driver memory (including lumbar) adjustable head restraints storage pockets and floor console (STD)
• BODY-COLORED EXTERIOR COMPONENTS
• Air Suspension
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Air Suspension
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front Performance
• Tires - Rear Performance
• Tow Hooks
• Conventional Spare Tire
• Conventional Spare Tire
• Luggage Rack
• Luggage Rack
• Running Boards/Side Steps
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Folding Mirrors
• Privacy Glass
• Cargo Shade
• AM/FM Stereo
• CD Player
• Navigation System
• Satellite Radio
• MP3 Capability
• Auxiliary Audio Input
• Hard Disk Drive Media Storage
• Requires Subscription
• Premium Sound System
• MP3 Capability
• Auxiliary Audio Input
• Rear Seat Audio Controls
• Power Outlet
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Leather Seats
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Cooled Front Seat(s)
• Heated Front Seat(s)
• Cooled Front Seat(s)
• Pass-Through Rear Seat
• Rear Bench Seat
• Rear Seat Audio Controls
• Woodgrain Interior Trim
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Leather Steering Wheel
• Heated Steering Wheel
• Cruise Control
• Steering Wheel Audio Controls
• Immobilizer
• Cruise Control
• Power Windows
• Power Door Locks
• Adjustable Pedals
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Universal Garage Door Opener
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Power Outlet
• Front Reading Lamps
• Rear Reading Lamps
• Back-Up Camera
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Rear Head Air Bag
• Front Side Air Bag
• Rear Parking Aid
• Telematics
• Navigation from Telematics
• Requires Subscription
• Telematics
• Requires Subscription
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Requires Subscription
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 16.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): 3104
• Curb Weight - Rear (lbs): 2865
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 750
• Suspension
• Suspension Type - Front: Coil Over Shock
• Suspension Type - Rear: Rear Air Assisted
• Spring Capacity - Front (lbs): 3800
• Spring Capacity - Rear (lbs): 4100
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3800
• Axle Capacity - Rear (lbs): 4100
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 46
• Stabilizer Bar Diameter - Front (in): 1.12
• Stabilizer Bar Diameter - Rear (in): 1.12
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.8
• Tires
• Front Tire Order Code: QSS
• Rear Tire Order Code: QSS
• Spare Tire Order Code: ZRS
• Front Tire Size: P275/55R20
• Rear Tire Size: P275/55R20
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2204
• Rear Tire Capacity (lbs): 2204
• Spare Tire Capacity (lbs): 2135
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 20 x 8.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.8
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.0
• Frame
• Frame Type: Body on
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Inboard LH Frame Rail
• Exterior Dimensions
• Wheelbase (in): 130.0
• Length, Overall w/o rear bumper (in): 221.3
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 76.6
• Overhang, Front (in): 38.8
• Overhang, Rear w/o bumper (in): 52.9
• Ground to Top of Load Floor (in): 31.0
• Ground Clearance, Front (in): 9.1
• Ground Clearance, Rear (in): 9.1
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 63.3 Min, 98.2 Max
• Cargo Box Width @ Top, Rear (in): 50.0
• Cargo Box Width @ Floor (in): 50.0
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.5
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 45.5
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 60.3
• Second Head Room (in): 40.0
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 62.3
• Summary

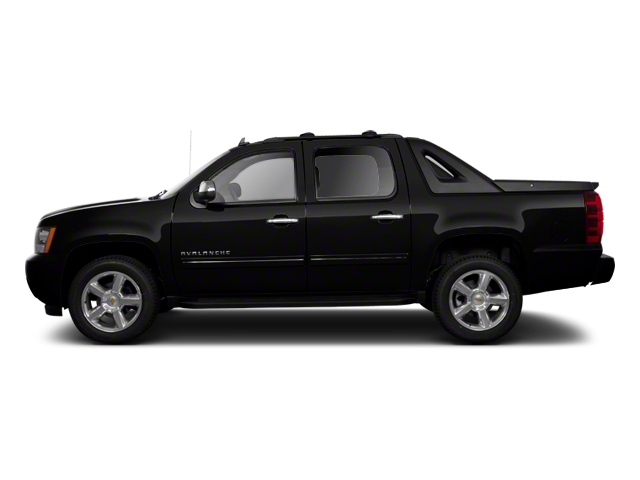

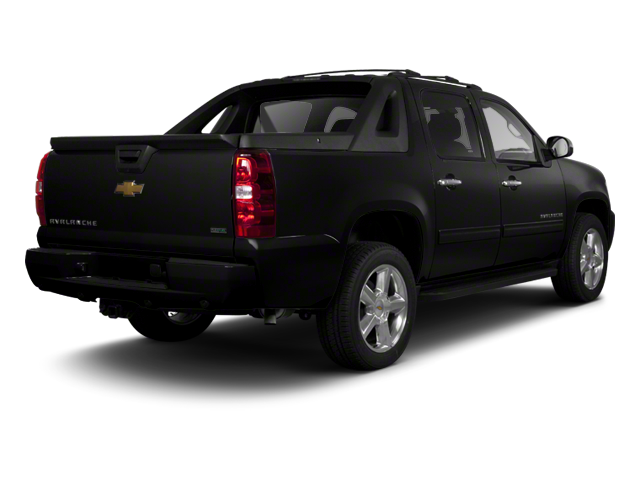

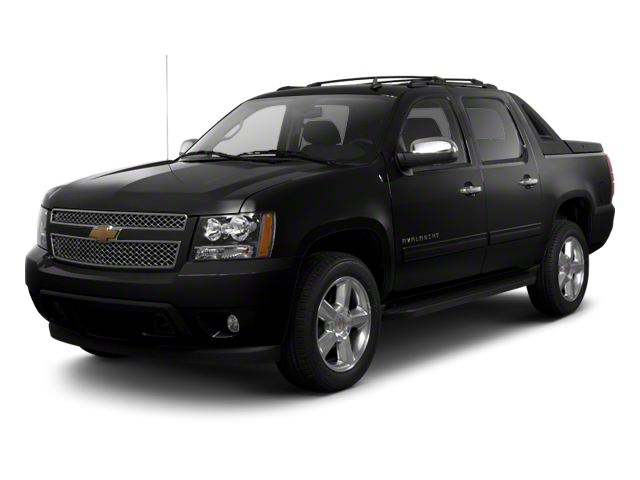

• Vehicle Name: Chevrolet Avalanche
• Body Style: 4 Door Crew Cab
• Emissions
• EPA Greenhouse Gas Score: 2
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.0
