• Air conditioning, single-zone
• Air vents, rear (Not available with Regular Cab model.)
• Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
• Bluetooth® for phone connectivity to vehicle infotainment system
• Compass, located in instrument cluster
• Door locks, power

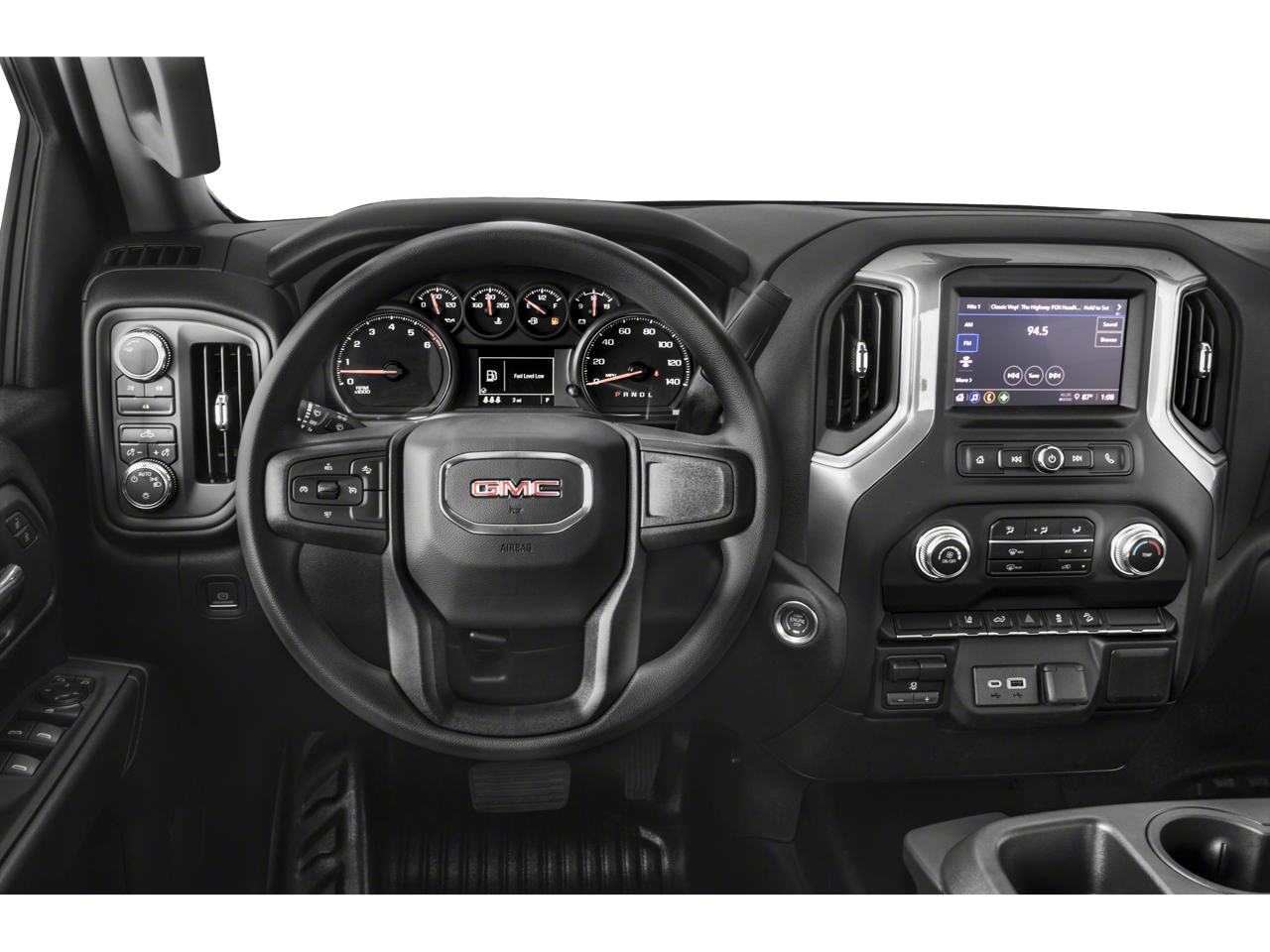

• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
• GMC Connected Access capable (Included and only available with (UE1) OnStar. Subject to terms. See onstar.com or dealer for details.)
• Mirror, inside rearview, manual tilt
• Power outlet, front auxiliary, 12-volt
• Remote Keyless Entry
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

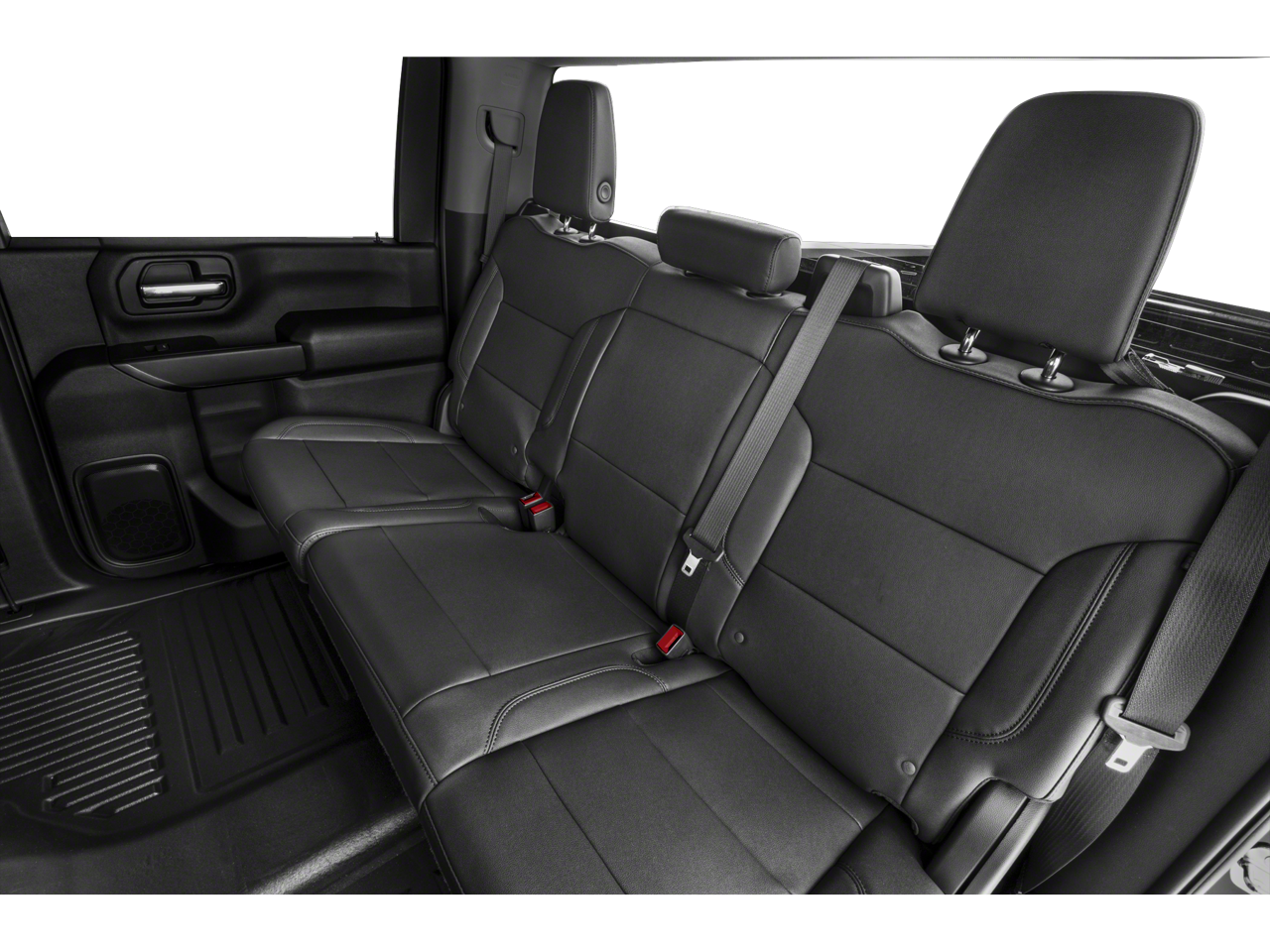

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Not available with Regular Cab model.)

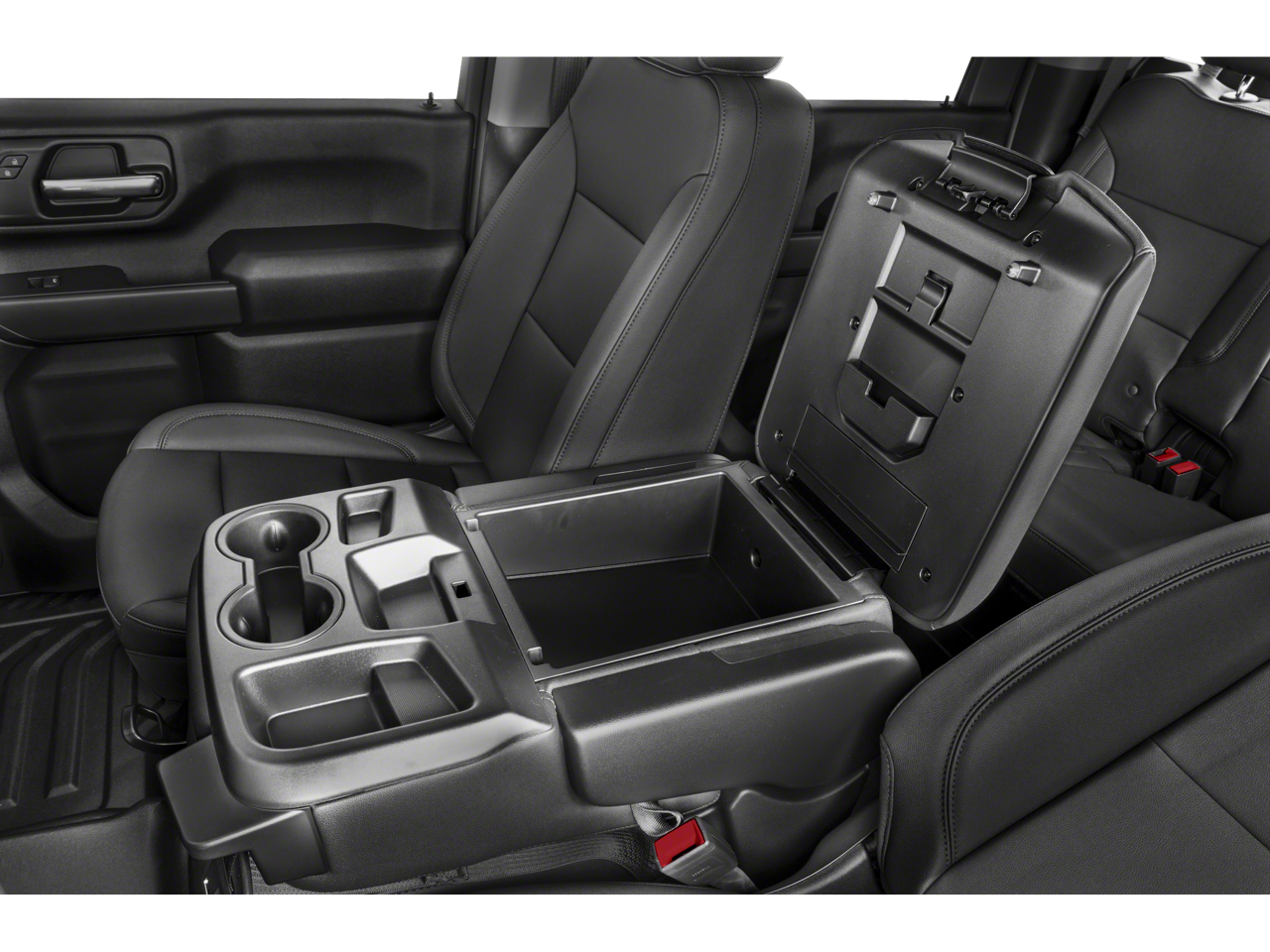

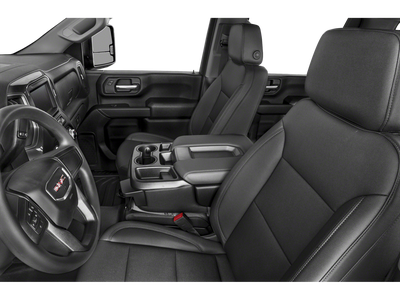

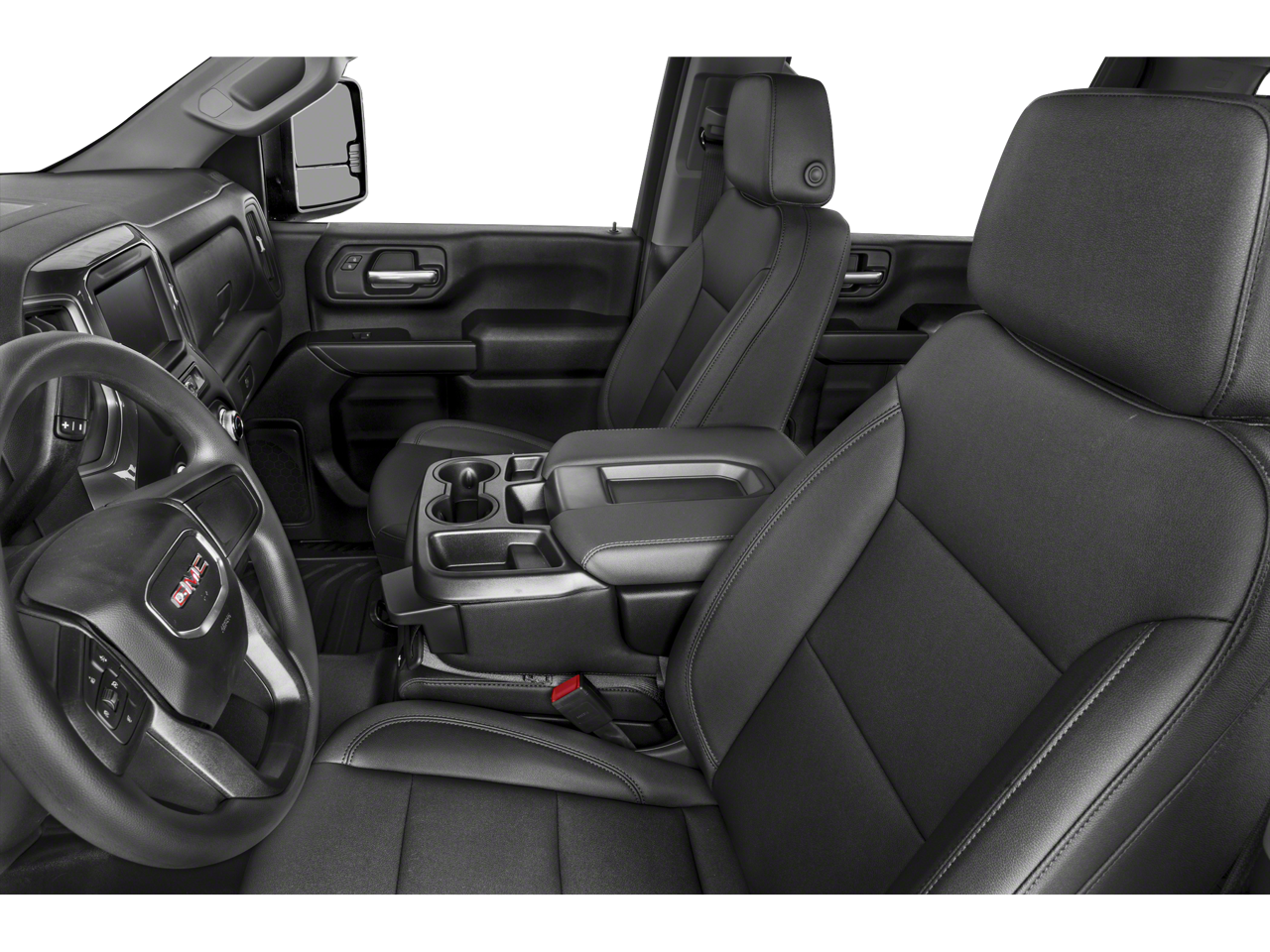

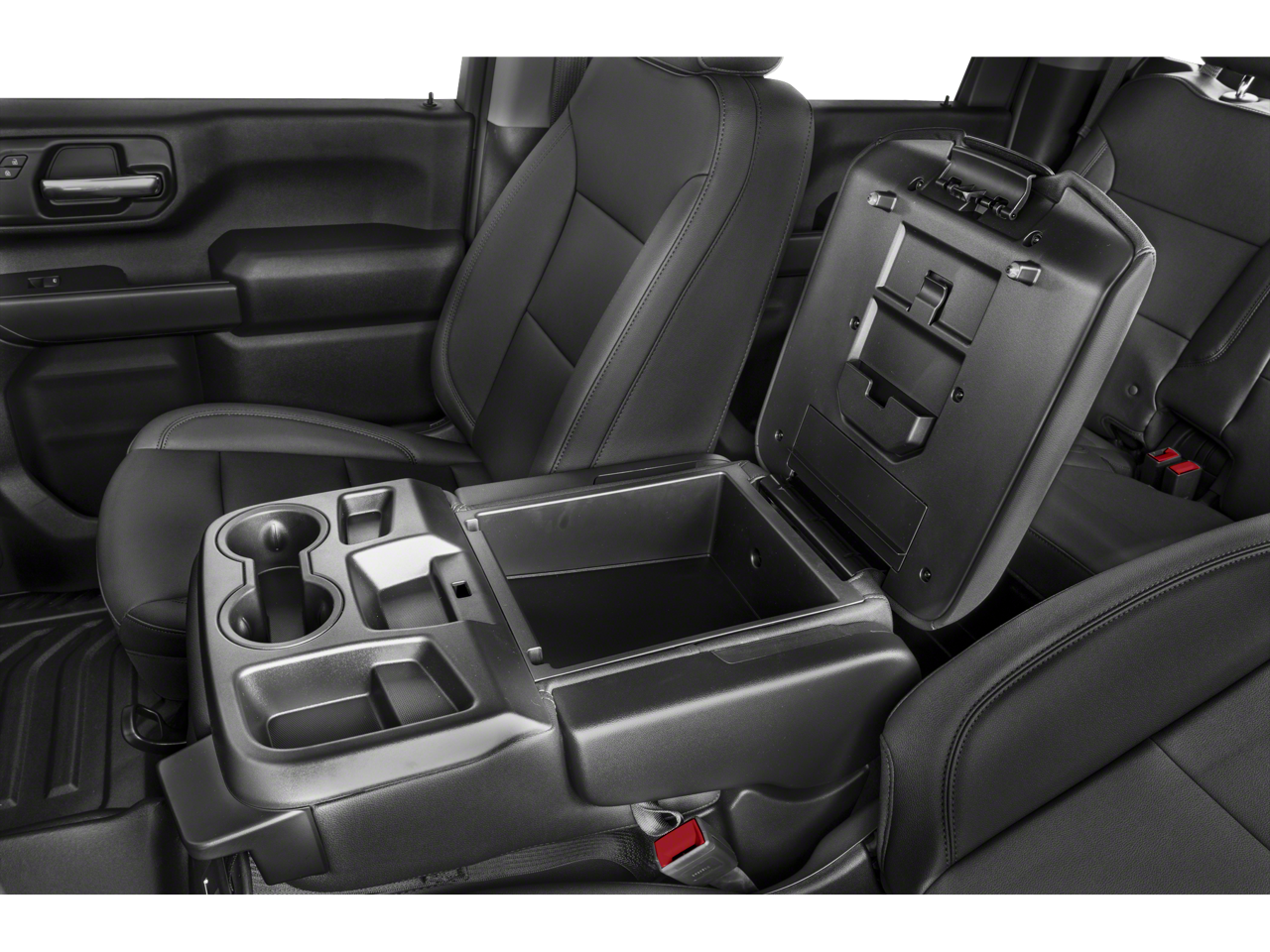

• Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
• Steering wheel, urethane
• USB Ports, 2, Charge/Data ports located on instrument panel
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Window, power front, drivers express up/down
• Window, power front, passenger express down
• Windows, power rear, express down (Not available on Regular Cab models.)
• Wireless Phone Projection for Apple CarPlay and Android Auto

• Air filter, heavy-duty
• Air filtration monitoring
• Auto-locking rear differential
• Brake lining wear indicator
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Four wheel drive
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Push Button Start
• Recovery hooks, front, frame-mounted, Black
• Steering, Recirculating Ball with smart flow power steering system
• Suspension Package (Not available with (X31) Off-Road Package.)
• Transfer case, two-speed electronic shift with push button controls (Requires 4WD models.)

• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Automatic Emergency Braking (Included and only available with (PDI) Sierra HD Pro Safety.)
• Daytime Running Lamps LED signature lighting
• Following Distance Indicator (Included and only available with (PDI) Sierra HD Pro Safety.)
• Forward Collision Alert (Included and only available with (PDI) Sierra HD Pro Safety.)
• Front Pedestrian Braking (Included and only available with (PDI) Sierra HD Pro Safety.)
• Indicator-Seat Belt WARNING, Rear Seat (Requires Crew Cab or Double Cab model.)
• Lane Departure Warning (Included and only available with (PDI) Sierra HD Pro Safety.)
• LED Signature DRL's
• OnStar and GMC connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Rear Seat Reminder (Requires Crew Cab or Double Cab model.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System auto learn, includes Tire Fill Alert (does not apply to spare tire)

GVWR, 11,700 LBS. (5307 KG) WITH SINGLE REAR WHEELS

• (STD)

PRO PREFERRED EQUIPMENT GROUP

• includes standard equipment

SINGLE REAR WHEELS

• (STD)

UPFITTER SWITCH KIT, (5)

• Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.

PICKUP BED

• includes bed assist step (STD)

LED CARGO AREA LIGHTING

• located in cargo bed activated with switch on center switch bank or key fob

SNOW PLOW PREP/CAMPER PACKAGE

• includes (KW5) 220-amp alternator
• includes increased front GAWR on Heavy Duty models
• (NZZ) skid plates (transfer case and oil pan)
• pass through dash grommet hole and roof emergency light provisions. Contact GM Upfitter Integration at www.gmupfitter.com for plow installation details and assistance. Note: if ordered for Camper usage
• recommend ordering (UY2) Trailering wiring provisions and includes (KW5) 220-amp alternator

SKID PLATES

• protect the oil pan
• front axle and transfer case

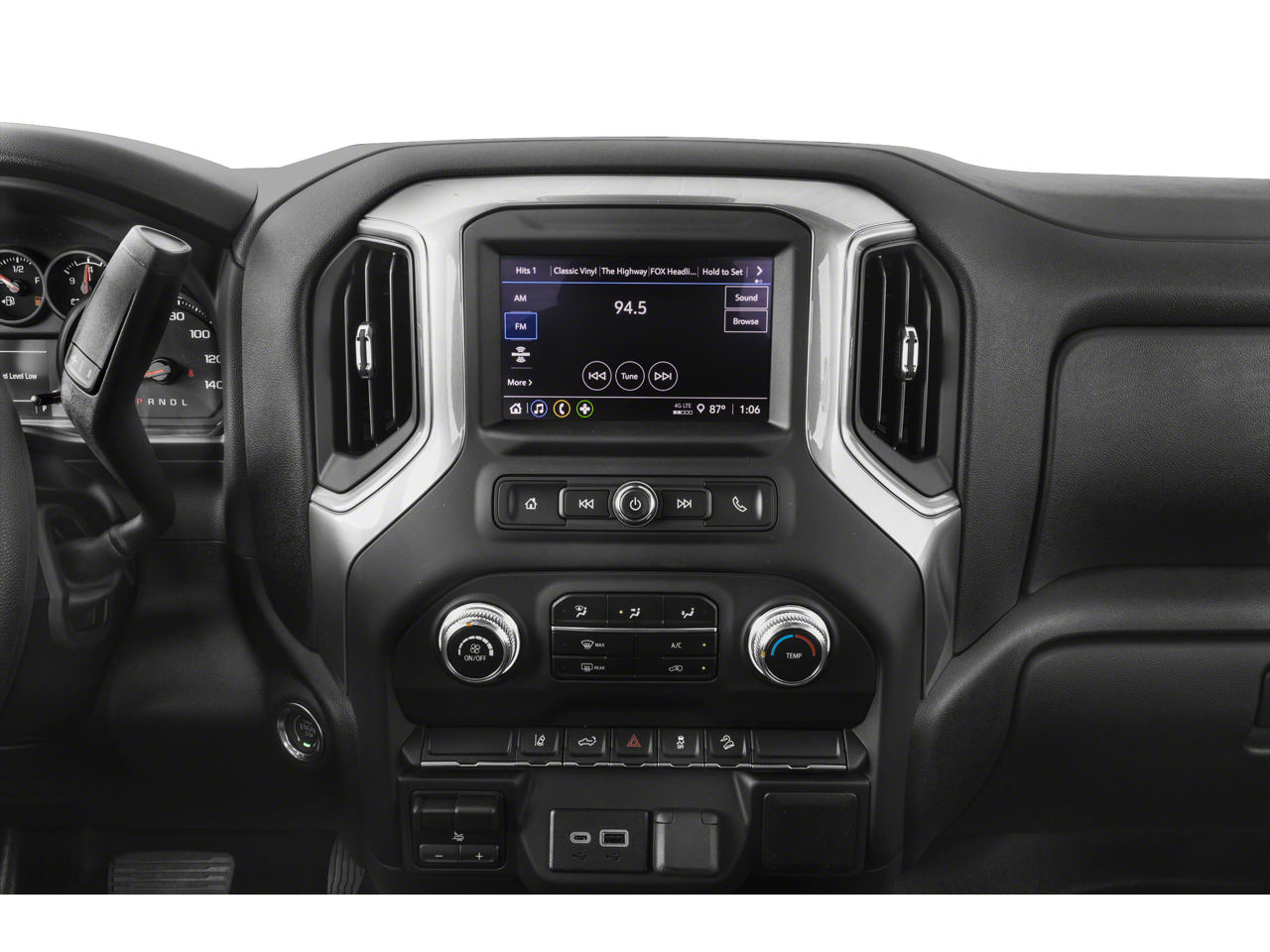

AUDIO SYSTEM, GMC INFOTAINMENT SYSTEM WITH 7" DIAGONAL COLOR TOUCHSCREEN, AM/FM STEREO

• with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones; featuring wireless Apple CarPlay and Android Auto capable (STD)

SEATS, FRONT 40/20/40 SPLIT-BENCH

• (STD)

TIRE, SPARE LT275/70R18 ALL-TERRAIN, BLACKWALL

• (STD)

STEERING COLUMN, TILT-WHEEL, MANUAL

• with wheel locking security feature

TIRES, LT275/70R18E ALL-TERRAIN, BLACKWALL

• (STD)

BED LINER, SPRAY-ON

• Pickup bedliner (does not include spray-on liner on tailgate due to Black composite inner panel)

TRAILERING WIRING PROVISIONS

• for trailering
• 5th wheel and gooseneck trailer
• includes additional 7-way wiring harness located at the rear of the pickup bed attached to the rear frame cross member

CONVENIENCE PACKAGE

• includes (QT5) EZ Lift power lock and release tailgate
• (K34) Cruise control
• (AKO) tinted glass
• (UF2) LED cargo bed lighting
• (C49) rear-window defogger and Double Cab and Crew Cab models include (DBG) outside power-adjustable vertical trailering with heated upper glass. Note: when (G9Y) 14
• 000 lbs. (6350 kg) with dual rear wheels is ordered
• (DWI) Mirrors
• outside power-adjustable vertical trailering will be included.

WHEELS, 18" (45.7 CM) 8-SPOKE PAINTED STEEL, SILVER EXTENDED

• (STD)

POWER OUTLET, BED MOUNTED, 120-VOLT

• (400 watts shared with (KI4) instrument panel mounted power outlet)

TRANSMISSION, ALLISON 10-SPEED AUTOMATIC

• (STD)

• GLASS DEEP-TINTED
• GVWR 11 700 LBS. (5307 KG) WITH SINGLE REAR WHEELS (STD)
• TAILGATE GATE FUNCTION MANUAL WITH EZ LIFT includes power lock and release includes hitch area light
• PRO PREFERRED EQUIPMENT GROUP includes standard equipment
• SUMMIT WHITE
• DEFOGGER REAR-WINDOW ELECTRIC
• SINGLE REAR WHEELS (STD)
• UPFITTER SWITCH KIT (5) Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.
• PICKUP BED includes bed assist step (STD)
• LED CARGO AREA LIGHTING located in cargo bed activated with switch on center switch bank or key fob
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 3.73 RATIO
• LICENSE PLATE KIT FRONT
• POWER OUTLET INSTRUMENT PANEL 120-VOLT (400 watts shared with (KC9) bed mounted power outlet)
• USB PORTS (2) CHARGE-ONLY REAR
• SNOW PLOW PREP/CAMPER PACKAGE includes (KW5) 220-amp alternator includes increased front GAWR on Heavy Duty models (NZZ) skid plates (transfer case and oil pan) pass through dash grommet hole and roof emergency light provisions. Contact GM Upfitter Integration at www.gmupfitter.com for plow installation details and assistance. Note: if ordered for Camper usage recommend ordering (UY2) Trailering wiring provisions and includes (KW5) 220-amp alternator
• SKID PLATES protect the oil pan front axle and transfer case

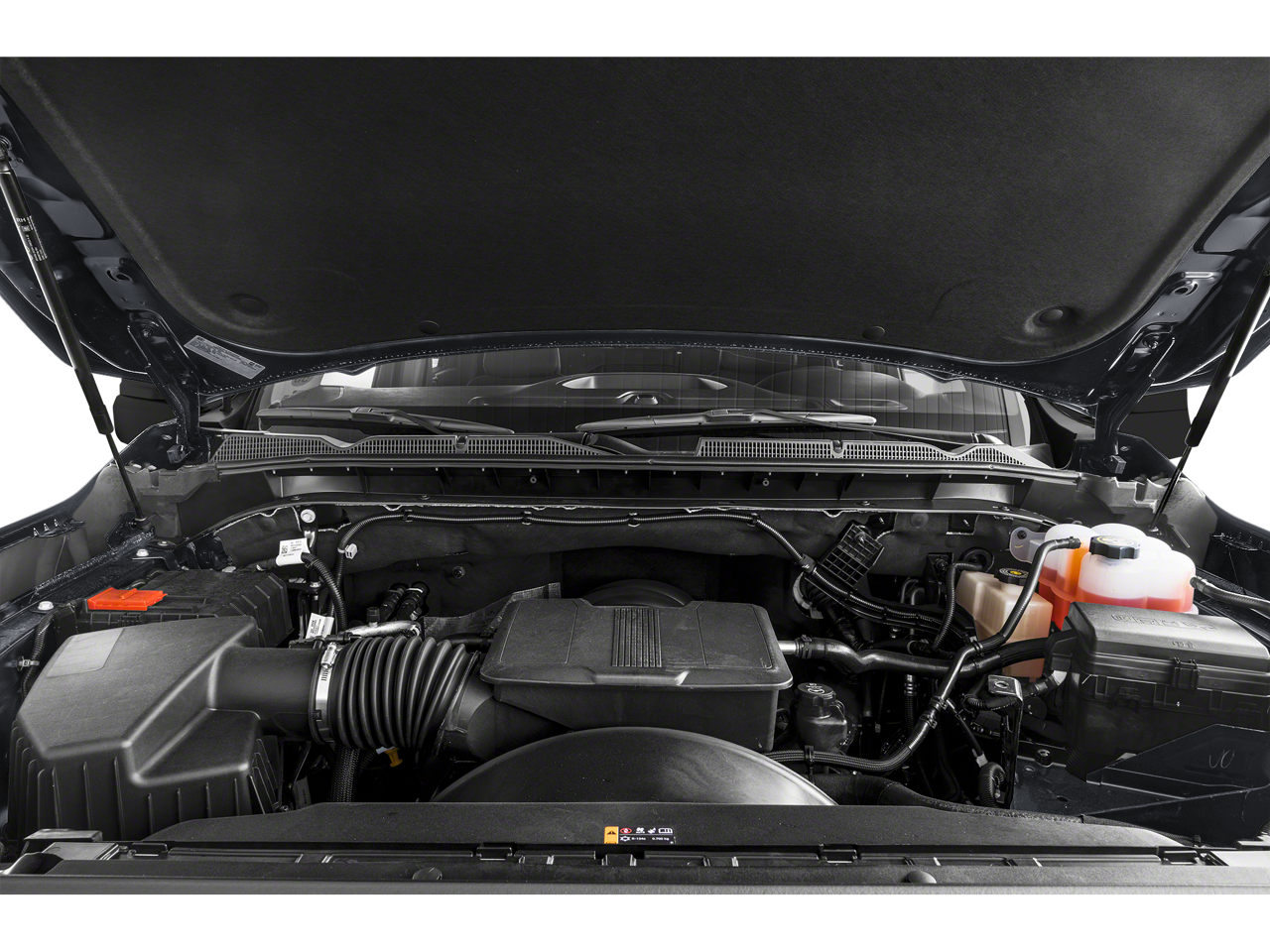

• ENGINE 6.6L V8 WITH DIRECT INJECTION AND VARIABLE VALVE TIMING GASOLINE (401 hp [299 kW] @ 5200 rpm 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)
• ALTERNATOR 220 AMPS
• AUDIO SYSTEM GMC INFOTAINMENT SYSTEM WITH 7" DIAGONAL COLOR TOUCHSCREEN AM/FM STEREO with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones; featuring wireless Apple CarPlay and Android Auto capable (STD)
• SEATS FRONT 40/20/40 SPLIT-BENCH (STD)
• TIRE SPARE LT275/70R18 ALL-TERRAIN BLACKWALL (STD)
• STEERING COLUMN TILT-WHEEL MANUAL with wheel locking security feature
• TIRES LT275/70R18E ALL-TERRAIN BLACKWALL (STD)
• BED LINER SPRAY-ON Pickup bedliner (does not include spray-on liner on tailgate due to Black composite inner panel)
• JET BLACK CLOTH SEAT TRIM
• LAMPS SMOKED AMBER ROOF MARKER (LED)
• TRAILERING WIRING PROVISIONS for trailering 5th wheel and gooseneck trailer includes additional 7-way wiring harness located at the rear of the pickup bed attached to the rear frame cross member
• CONVENIENCE PACKAGE includes (QT5) EZ Lift power lock and release tailgate (K34) Cruise control (AKO) tinted glass (UF2) LED cargo bed lighting (C49) rear-window defogger and Double Cab and Crew Cab models include (DBG) outside power-adjustable vertical trailering with heated upper glass. Note: when (G9Y) 14 000 lbs. (6350 kg) with dual rear wheels is ordered (DWI) Mirrors outside power-adjustable vertical trailering will be included.
• WHEELS 18" (45.7 CM) 8-SPOKE PAINTED STEEL SILVER EXTENDED (STD)
• POWER OUTLET BED MOUNTED 120-VOLT (400 watts shared with (KI4) instrument panel mounted power outlet)
• MIRRORS OUTSIDE POWER-ADJUSTABLE VERTICAL TRAILERING WITH HEATED UPPER GLASS lower convex mirrors integrated turn signals manual folding/extending (extends 3.31" [84.25mm]) Black
• NOT EQUIPPED WITH USB PORTS REAR SEE DEALER FOR DETAILS
• TRANSMISSION ALLISON 10-SPEED AUTOMATIC (STD)
• CRUISE CONTROL STEERING WHEEL-MOUNTED
• Transfer case two-speed electronic shift with push button controls (Requires 4WD models.)
• Push Button Start
• GVWR 11 700 lbs. (5307 kg) with single rear wheels (Included and only available with model TK30943 model and (L8T) 6.6L V8 gas engine. Requires single rear wheels.)
• Air filter heavy-duty
• Transmission Allison 10-Speed automatic
• Four wheel drive
• Brake lining wear indicator
• Steering Recirculating Ball with smart flow power steering system
• Recovery hooks front frame-mounted Black
• Brakes 4-wheel antilock 4-wheel disc with DURALIFE rotors
• Auto-locking rear differential
• Capless Fuel Fill (Requires (L8T) 6.6L gas V8 engine. Not included with (ZW9) pickup bed delete.)
• Cooling auxiliary external transmission oil cooler
• Suspension Package (Not available with (X31) Off-Road Package.)
• Alternator 170 amps (Requires (L8T) 6.6L V8 gas engine.)
• Engine 6.6L V8 with Direct Injection and Variable Valve Timing gasoline (401 hp [299 kW] @ 5200 rpm 464 lb-ft of torque [629 N-m] @ 4000 rpm)
• Frame fully-boxed hydroformed front section and a fully-boxed stamped rear section
• Rear axle 3.73 ratio (Requires (L8T) 6.6L V8 gas engine.)
• Cooling external engine oil cooler
• Pickup bed includes bed assist step (Deleted when (ZW9) pickup bed delete is ordered.)
• Battery heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power (Included and only available with (L8T) 6.6L V8 gas engine.)
• Air filtration monitoring
• Wheels 18" (45.7 cm) 8-spoke painted steel Silver Extended (Requires single rear wheels.)
• Bed Step Black integrated on forward portion of bed on driver and passenger side (Not available with (ZW9) pickup bed delete.)
• CornerStep rear bumper
• Bumper front chrome lower
• Glass solar absorbing tinted
• Lamps cargo area cab mounted integrated with center high mount stop lamp with switch in bank on left side of steering wheel
• Grille Chrome with flat black grille insert bars
• Door handles Black grained
• Tires LT275/70R18E all-terrain blackwall (Requires single rear wheels.)
• Tailgate standard (Deleted with (ZW9) pickup bed delete.)
• Moldings beltline Black
• Headlamps Animated LED projectors LED turn signals and Daytime Running Lamps
• Single Rear Wheels
• Taillamps LED Signature Tail Incandescent Brake Turn & Reverse Lamps (Requires single rear wheels.)
• Bumper rear chrome with bumper CornerSteps
• Cargo tie downs (12) fixed rated at 500 lbs per corner
• Tire spare LT275/70R18 all-terrain blackwall (Included and only available with (QF6) LT275/70R18E all-terrain blackwall tires with (E63) pickup bed single rear wheel models. Available to order when (ZW9) pickup bed delete and (QF6) LT275/70R18E all-terrain blackwall tires are ordered with single rear wheel models.)
• IntelliBeam automatic high beam on/off (Included and only available with (PDI) Sierra HD Pro Safety.)
• Tailgate and bed rail protection caps top (Deleted with (ZW9) pickup bed delete.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.)
• Mirrors outside high-visibility vertical trailering lower convex mirrors manual-folding/extending (extends 3.31" [84.25mm]) molded in Black (Not available on Regular Cab models.)
• Tailgate locking utilizes same key as ignition and door (Included and only available with (QK1) standard tailgate. Deleted with (ZW9) pickup bed delete.)
• Tailgate gate function manual no lift assist (Deleted with (ZW9) pickup bed delete.)
• Remote Keyless Entry
• Audio system feature 6-speaker system (Requires Crew Cab or Double Cab model.)
• Bluetooth® for phone connectivity to vehicle infotainment system
• Power outlet front auxiliary 12-volt
• Window power front drivers express up/down
• Seats front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
• Wireless Phone Projection for Apple CarPlay and Android Auto
• SiriusXM enjoy a Platinum Plan trial subscription (Requires (UE1) OnStar. IMPORTANT: The SiriusXM trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. Trial subscription is subject to the SiriusXM Customer Agreement and privacy policy visit www.siriusxm.com which includes full terms and how to cancel. All fees content features and availability are subject to change.)
• Window power front passenger express down
• Assist handles front A-pillar mounted for driver and passenger rear B-pillar mounted
• Mirror inside rearview manual tilt
• Floor covering rubberized-vinyl (Not available with LPO floor liners.)
• Air vents rear (Not available with Regular Cab model.)
• Audio system GMC Infotainment System with 7" diagonal color touchscreen AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones; featuring wireless Apple CarPlay and Android Auto capable
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Windows power rear express down (Not available on Regular Cab models.)
• Instrument cluster 6-gauge cluster featuring speedometer fuel level engine temperature tachometer voltage and oil pressure
• Door locks power
• Steering wheel urethane
• Seat rear 60/40 folding bench (folds up) 3-passenger (includes child seat top tether anchor) (Not available with Regular Cab model.)
• Seat adjuster passenger 4-way manual
• USB Ports 2 Charge/Data ports located on instrument panel
• Driver Information Center 3.5" diagonal monochromatic display
• Compass located in instrument cluster
• Exterior Temperature Display located in radio display
• Air conditioning single-zone
• Seat adjuster driver 4-way manual
• GMC Connected Access capable (Included and only available with (UE1) OnStar. Subject to terms. See onstar.com or dealer for details.)
• Following Distance Indicator (Included and only available with (PDI) Sierra HD Pro Safety.)
• Daytime Running Lamps LED signature lighting
• Hitch Guidance dynamic single line to aid in truck trailer alignment for hitching (Deleted with (ZW9) pickup bed delete.)
• Tire Pressure Monitoring System auto learn includes Tire Fill Alert (does not apply to spare tire)
• Lane Departure Warning (Included and only available with (PDI) Sierra HD Pro Safety.)
• OnStar and GMC connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Airbags Dual-s

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 83.5
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 55.2
• Ground Clearance, Front (in): 11.14
• Ground Clearance, Rear (in): 11.14
• Height, Overall (in): 80.67
• Length, Overall (in): 266.77
• Wheelbase (in): 172
• Width, Max w/o mirrors (in): 81.85
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Interior Dimensions
• Front Head Room (in): 43.03
• Front Hip Room (in): 61.18
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Passenger Capacity: 6
• Second Head Room (in): 40.12
• Second Hip Room (in): 60.24
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Steering
• Steering Ratio (:1), At Lock: N/A
• Steering Type: Pwr Recirculating Ball
• Turning Diameter - Curb to Curb (ft): 57.0
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: E63
• Body Style: Crew Cab Pickup
• Vehicle Name: GMC Sierra 3500HD
• Suspension
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Short/Long Arm w/Torsion Bars
• Suspension Type - Rear: 3-Stage Multi-Leaf
• Tires
• Front Tire Order Code: QF6
• Front Tire Size: LT275/70R18
• Rear Tire Order Code: QF6
• Rear Tire Size: LT275/70R18
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZYG
• Spare Tire Size: LT275/70R18
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4557
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18230
• Maximum Trailering Capacity (lbs): 20000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1600
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16000
• Weight Information
• Curb Weight - Front (lbs): 4209
• Curb Weight - Rear (lbs): 2870
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Rear (lbs): 7250
• Gross Combined Wt Rating (lbs): 24000
• Gross Vehicle Weight Rating Cap (lbs): 11500
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 18 x 8
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 18 x 8
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 18 x 8
